PLC (Programmable Logic Controller)

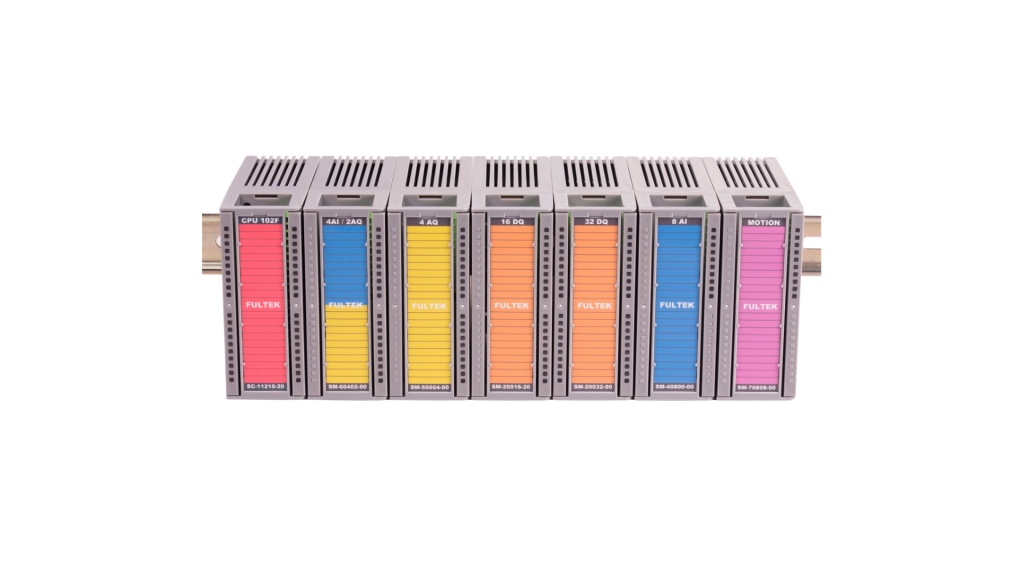

FULMATIC 7 PLC Systems

Fulmatic 7 – Series PLCs are the programmable control devices which are designed according to the automation needs by considering the tough conditions of the industry. Fulmatic 7 – Series PLCs are offered with 3 different memory options, 32 kB, 115 kB and 175 kB. All PLCs include Ethernet, Modbus TCP and minimum 1 RS485 Modbus RTU connection as well as Web Server feature. The program can be installed into Fulmatic 7 PLCs in RUN state, it doesn’t requires switching to STOP state.

Features:

  • The program can be installed while the PLC is running.
  • The reasons for swithching the PLC to STOP state are monitored in the diagnostics section.
  • High accuracy RTC(Real time clock) is standard for all models. It also works 30 days without energy supply. Battery does not used so it does not requires replacing the battery. Accuracy 3 seconds / Month @ 25 °C
  • The entire PLC memory can be used as ladder code or as persistent variables. You can use the 117760 Byte or 58880 Word variable in a single PLC.

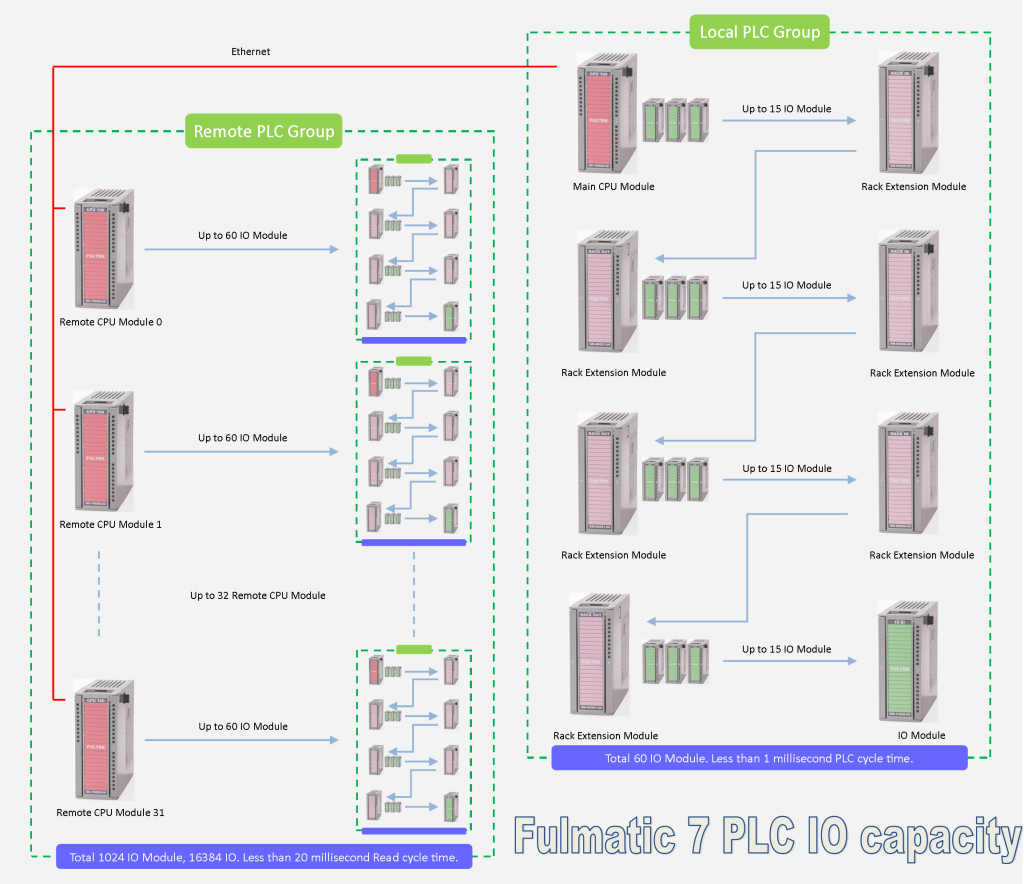

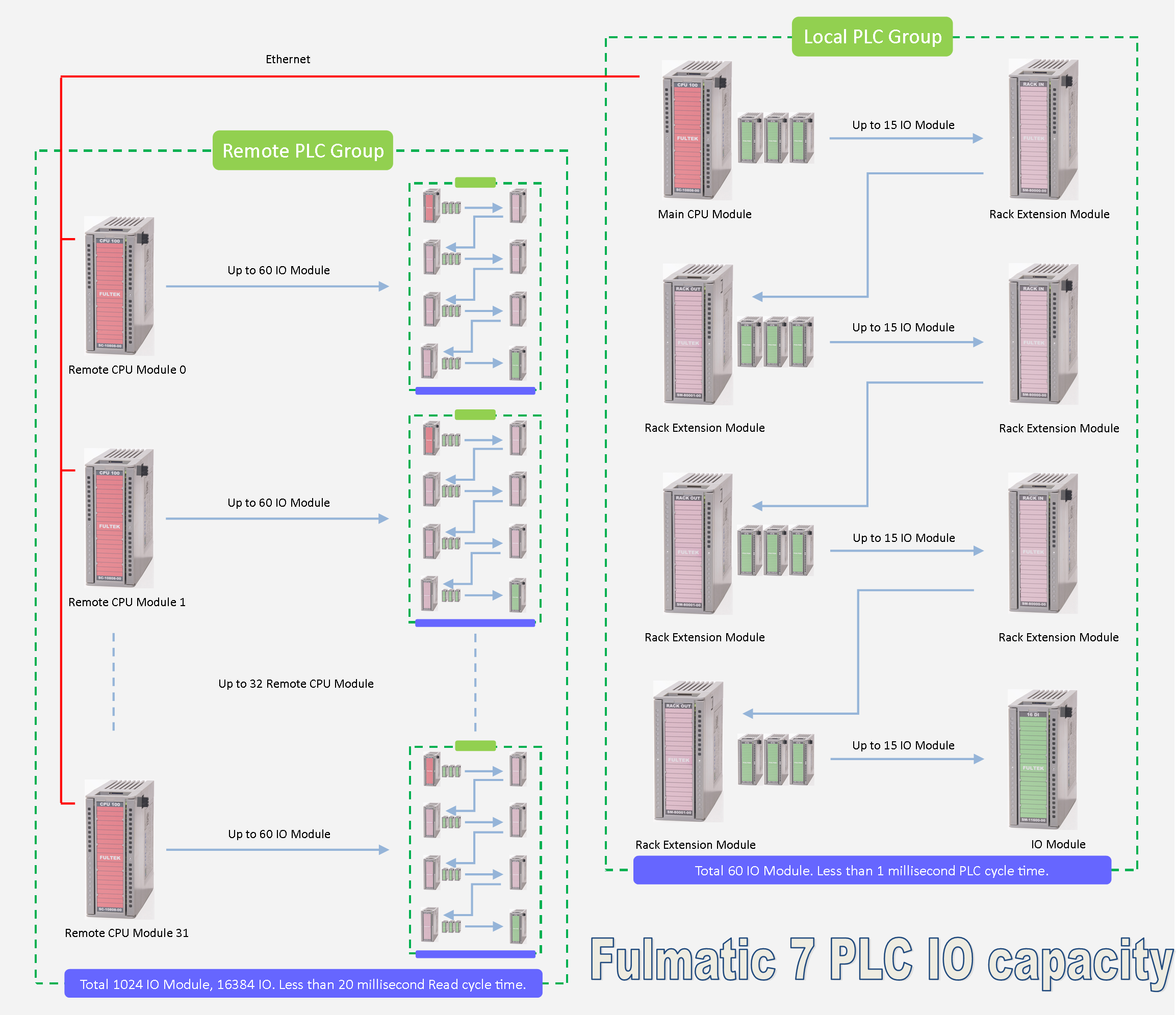

  • With additional modules, the 8192 Digital input or 512 analog input can also be extended to 8192 digital outputs or 512 analog outputs.
  • Thanks to its rack structure, 63 additional modules can be added to the PLC. 4 racks can be made with rack connection module.
  • Up to 32 Remote IO Cpu modules can be expanded. 4 racks can be added to each Remote IO Cpu module.
  • The maximum number of modules available in a rack is 16. When 1024 modules are used, the PLC cycle time will still be below 5 milliseconds.
  • Single PLC can respond to 17 devices simultaneously as 5 Modbus Tcp/Ip, 2 Modbus Rtu and 10 web client. At the same time, each device can read/write up to 256 bytes long data 60 times per second. The total duration of the query/response is about 16 milliseconds. At this time, the PLC cycle time will still be less than one millisecond.
  • With a single PLC, 256 automatic PID and 256 PWM control can be made. In addition, with the 8-channel Motion module, 256 of 100 KHz PW or PTO outputs can be used in the single PLC.
  • There are 256 software counter commands in one PLC. In addition, with the 8 channel counter(Motion) module, 256 units of 100 KHz counters can be used in single PLC.
  • A single PLC has 256 timers with a resolution of 1 millisecond. The time-based interrupt block allows you to create thousands of software-based timers.
  • You can create 256 program blocks and 256 function blocks in one PLC. Each block can have 32 networks. You can write 256 commands to each network.
  • Function blocks can work with a pre-loaded parameter. For example, you can prepare a function block for motor control and call this block differently for thousands of motors. For each call, you just need to assign the variables of the respective motor.
  • You can create 255 Data blocks in a single PLC. A data block can have a maximum length of 1024 bytes. DB0 is a 1024 byte length system data block. The first 345 bytes are used by the system. The other 679 Bytes are dedicated to your use. Program installation, PLC reset, firmware update or any other way DB0 is never deleted.
  • The powerful Ladder compiler will compile almost any code you prepare. Restrictive situations do not occur, such as simple PLCs, such that input is not available after an output or output on each line.
  • You can monitor the energy flow and variable values ​​very quickly in the online ladder block monitoring screen. From this screen you can change the values ​​of the variables.
  • All models have 512Kb webserver space. All kinds of files can be stored in this field. You can also use the PLC program to store the user manual or project images. You can access it encrypted and unencrypted. Files uploaded to the Webserver will only be stored in the PLC and no other servers are needed. Clients over the local network or the Internet can access these files. You can upload large image files to different servers for using webserver’s memory efficiently.
  • The hardware and safety features of the Fulmatic 7 Series PLCs are also at the highest level. All terminal connectors are protected. If 220-380 volts are not delivered incorrectly, the PLC will not be damaged. With 24 Volt you can connect all input outputs upside down, straight, short circuit or all other ways. Most will not work. You can even select analog inputs as 0-10 volts and use them as digital inputs with 24 volts. When 0-20 Ma is selected, the protection will be activated.
  • Fulmatic 7 PLCs are capable of updating firmware via ethernet. In this way, you can get benefits of all updates. As with some PLCs, you will never see the message “This version cannot program this PLC”. Each update will be available in old PLCs as well.
  • Fulmatic 7 PLCs are guaranteed for 2 years. Supply fails at 220 or 380 volts, water exposure or breakage with physical impacts is not covered by the warranty. Apart from these, we will only ask how its failed for improving our measures.

Fulmatic SOFT program is FREE.

With the Fulmatic SOFT program you can program Fulmatic 7 PLCs without any restrictions.

You can download Fulmatic 7 Series PLC CPU user’s manual here.

You can download Fulmatic SOFT software here.

You can download price list here.

CPU Modules

In all models of the Fulmatic 7 Series PLC CPU,

  • 1x 10/100 MBit full dublex Ethernet
  • Modbus TCP
  • 1x RS485 Modbus RTU, 2 pieces in some CPU models
  • There is a Web Server with 512 kB file space.
  • Analog inputs can be used as digital inputs.
NameOrder CodeDescriptionImageImagePrice
(USD)

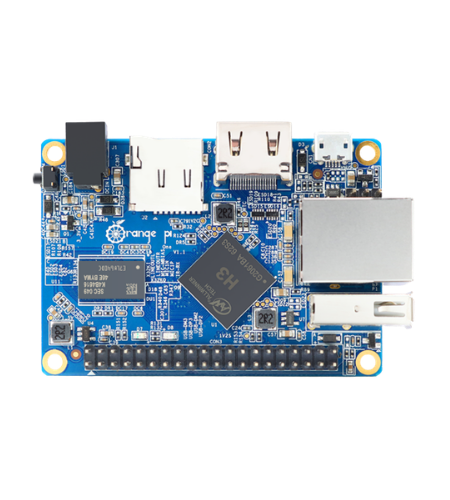

Soft PLCSC-00000-00Soft PLC works on every operating system. You can convert devices such as computers, Raspberry Pi or Orange Pi into PLC. You can use GPIOs as digital input, digital output, pwm, serial port and SPI. You can use USB serial port, serial port based barcode reader and similar devices. You can use Fulmatic PLC IO modules with remote IO CPU. You can run it for 60 minutes without purchasing a license. Click here for more information.
Program memory: 256 kB

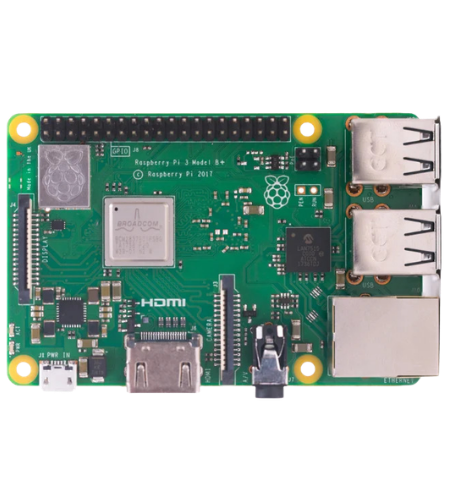

Raspberry Pi25

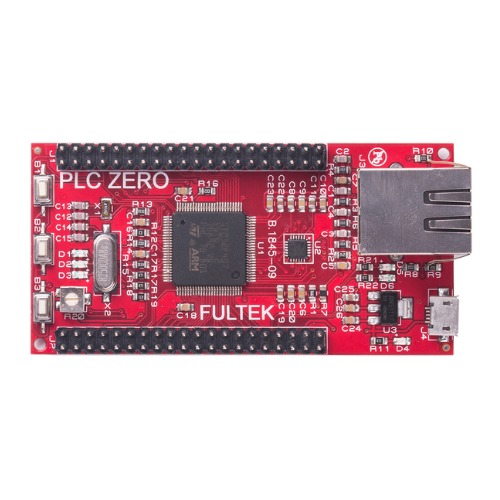

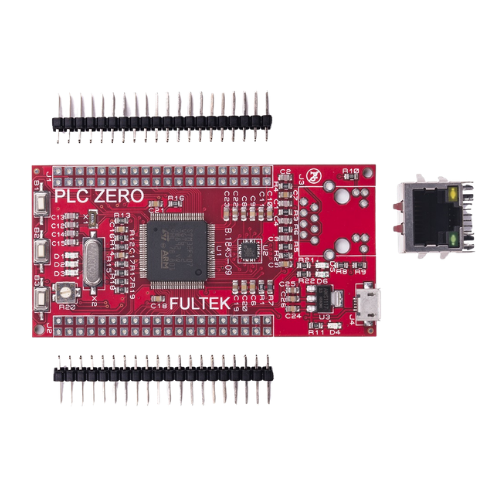

CPU ZEROSC-03210-00-00It is a PLC development kit.
All inputs and outputs are 3.3V and unprotected.
Powered by USB.
3x Button(I 0.0- I 0.2), 3x Led(Q 0.0-Q0.2)
1x Trimpot(AI 0)
This product has no warranty and no discounts are applied.
Program memory: 115 kB
Serial port: 2x
Digital input: 8x 200 KHz
Digital output: 8x 655 KHz
Analog input(12 Bit): 8x 3.3V
Analog uutput(12 Bit): 2x 3.3V
Selectable digital inputs/outputs: 16x
Visit here for more information.
30
CPU STM32SC-03210-00-80CPU STM32 has the same hardware features as CPU Zero.
Program memory: 2 kB
15

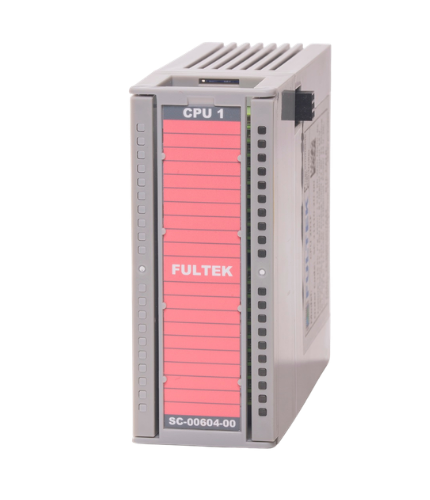

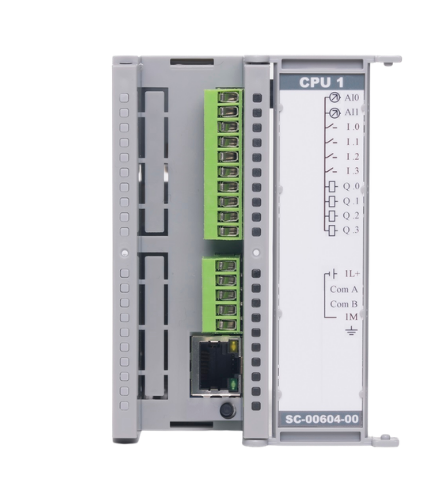

CPU ONESC-00604-00-00Program memory: 32 kB
Serial port: 1x RS485
Digital input: 4x 20 KHz
Digital output: 4x 20 KHz (0,5A)
Analog input(12 Bit): 2x 0-10V or 0-20mA
Download brochure from here.
90

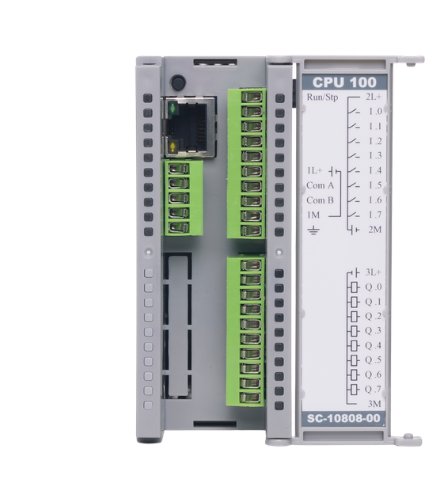

CPU 100SC-10808-00-00Program memory: 32 kB
Serial port: 1x RS485
Digital input: 8x 20 KHz
Digital output: 8x 20 KHz (0,5A)
Download brochure from here.
100

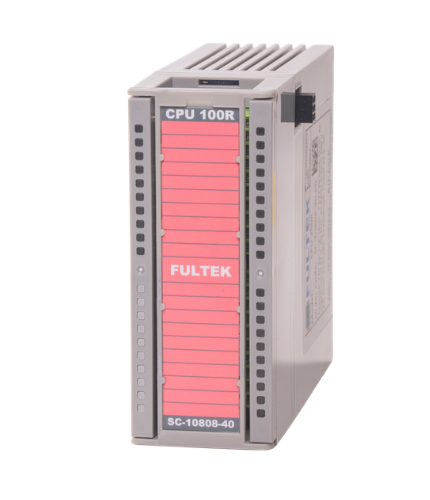

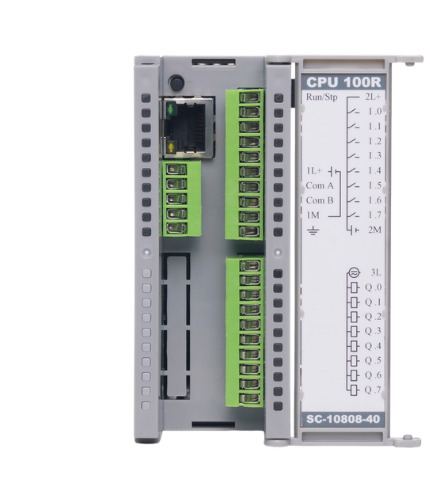

CPU 100RSC-10808-40-00Program memory: 32 kB
Serial port: 1x RS485
Digital input: 8x 20 KHz
Digital output: 8x Relay Output (2A)
Download brochure from here.
110

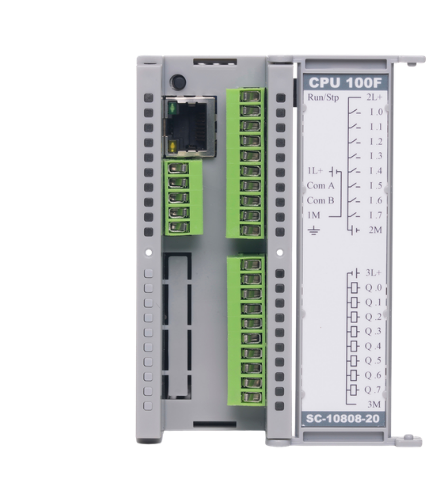

CPU 100FSC-10808-20-00Program memory: 32 kB
Serial port: 1x RS485
Digital input: 8x 200 KHz
Digital output: 8x 655 KHz (0,1A)
Download brochure from here.
150

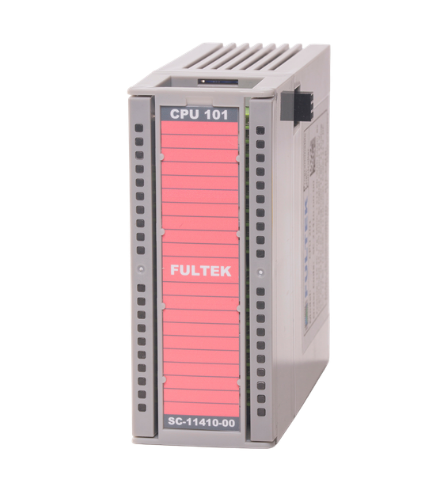

CPU 101SC-11410-00-00Program memory: 32 kB
Serial port: 1xRS485
Digital input: 8x 20 KHz
Digital output: 8x 20 KHz (0,5A)
Analog input(12 Bit): 6x 0-10V or 0-20mA
Analog output(12 Bit): 1x 0-10V and 1x 0-20mA
Download brochure from here.
150

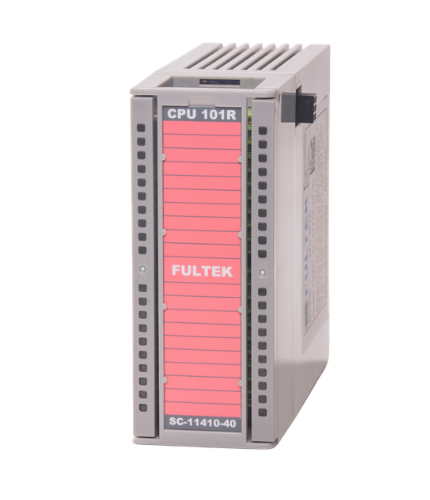

CPU 101RSC-11410-40-00Program memory: 32 kB
Serial port: 1xRS485
Digital input: 8x 20 KHz
Digital output: 8x Relay Output (2A)
Analog input(12 Bit): 6x 0-10V or 0-20mA
Analog output(12 Bit): 1x 0-10V and 1x 0-20mA
Download brochure from here.
160
CPU 101FSC-11410-20-00Program memory: 32 kB
Serial port: 1x RS485
Digital input: 8x 200 KHz
Digital output: 8x 655 KHz (0,1A)
Analog input(12 Bit): 6x 0-10V or 0-20mA
Analog output(12 Bit): 1x 0-10V and 1x 0-20mA
Download brochure from here.
200

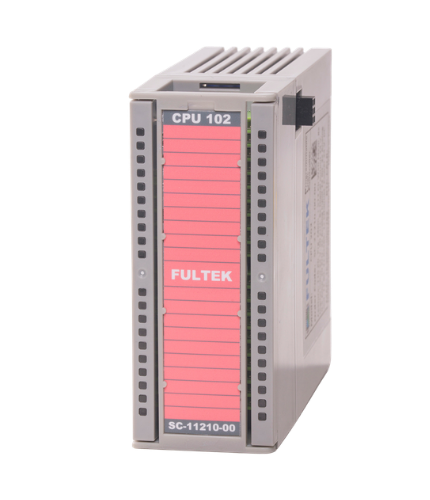

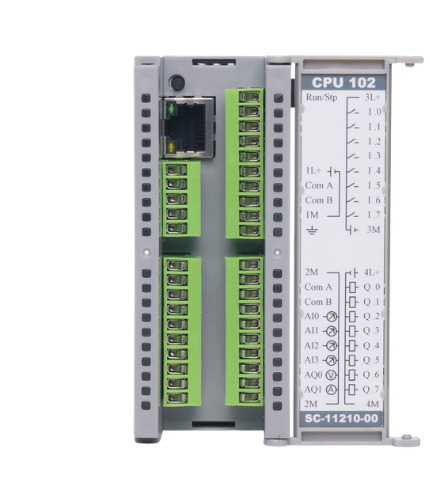

CPU 102SC-11210-00-00Program memory: 32 kB
Serial port: 2x RS485
Digital input: 8x 20 KHz
Digital output: 8x 20 KHz (0,5A)
Analog input(12 Bit): 6x 0-10V or 0-20mA
Analog output(12 Bit): 1x 0-10V and 1x 0-20mA
Download brochure from here.
175

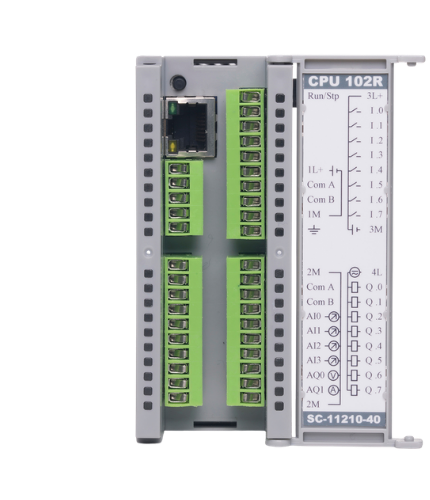

CPU 102RSC-11210-40-00Program memory: 32 kB
Seri port: 2x RS485
Digital input: 8x 20 KHz
Digital output: 8x Relay Output (2A)
Analog input(12 Bit): 6x 0-10V or 0-20mA
Analog output(12 Bit): 1x 0-10V and 1x 0-20mA
Download brochure from here.
185

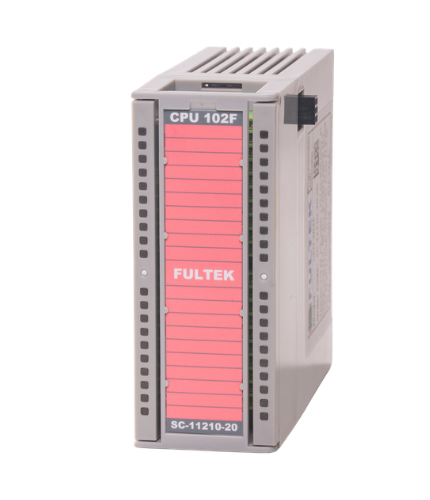

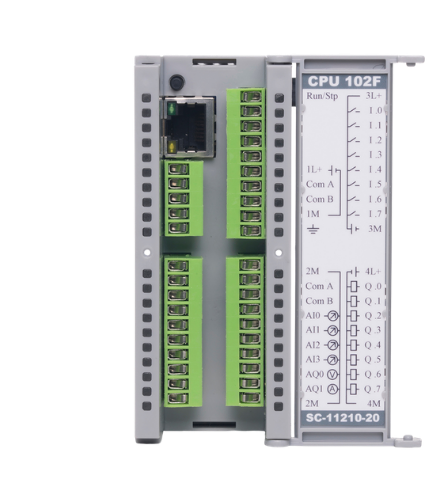

CPU 102FSC-11210-20-00Program memory: 32 kB
Serial port: 2x RS485
Digital input: 8x 200 KHz
Digital output: 8x 655 KHz (0,1A)
Analog input(12 Bit): 6x 0-10V or 0-20mA
Analog output(12 Bit): 1x 0-10V and 1x 0-20mA
Download brochure from here.
225

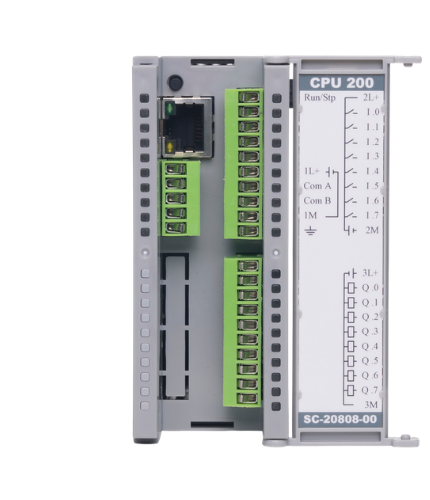

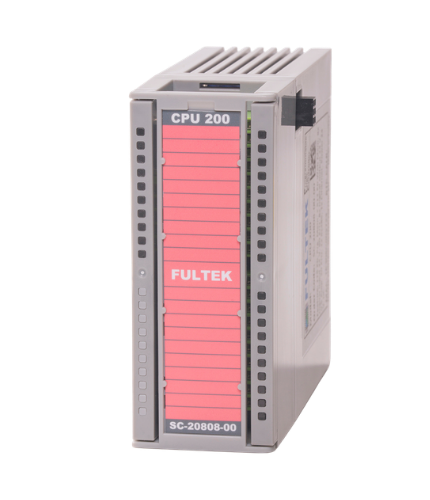

CPU 200SC-20808-00-00Program memory: 115 kB
Serial port: 1x RS485
Digital input: 8x 20 KHz
Digital output: 8x 20 KHz (0,5A)
Analog input(12 Bit): 6x 0-10V or 0-20mA
Analog output(12 Bit): 1x 0-10V and 1x 0-20mA
Download brochure from here.
200

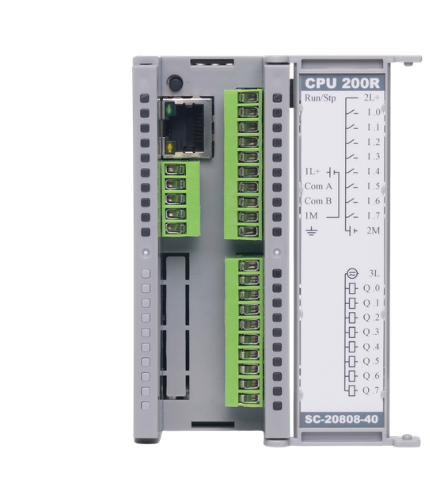

CPU 200RSC-20808-40-00
Program memory: 115 kB
Serial port: 1x RS485
Digital input: 8x 20 KHz
Digital output: 8x Relay Output (2A)
Analog input(12 Bit): 6x 0-10V or 0-20mA
Analog output(12 Bit): 1x 0-10V and 1x 0-20mA
Download brochure from here.
210

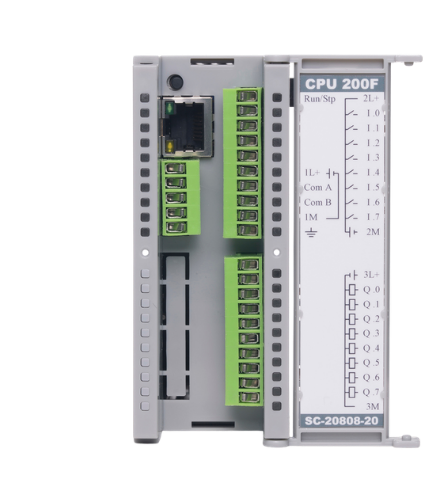

CPU 200FSC-20808-20-00Program memory: 115 kB
Serial port: 1x RS485
Digital input: 8x 200 KHz
Digital output: 8x 655 KHz (0,1A)
Analog input(12 Bit): 6x 0-10V or 0-20mA
Analog output(12 Bit): 1x 0-10V and 1x 0-20mA
Download brochure from here.
250

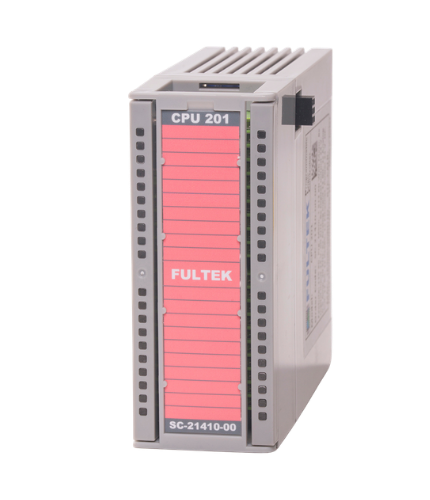

CPU 201SC-21410-00-00Program memory: 115 kB
Serial port: 1x RS485
Digital input: 8x 20 KHz
Digital output: 8x 20 KHz (0,5A)
Analog input(12 Bit): 6x 0-10V or 0-20mA
Analog output(12 Bit): 1x 0-10V and 1x 0-20mA
Download brochure from here.
250

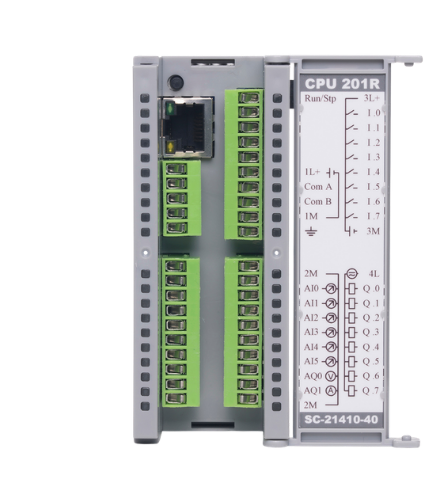

CPU 201RSC-21410-40-00Program memory: 115 kB
Serial port: 1x RS485
Digital input: 8x 20 KHz
Digital output: 8x Relay Output (2A)
Analog input(12 Bit): 6x 0-10V or 0-20mA
Analog output(12 Bit): 1x 0-10V and 1x 0-20mA
Download brochure from here.
260

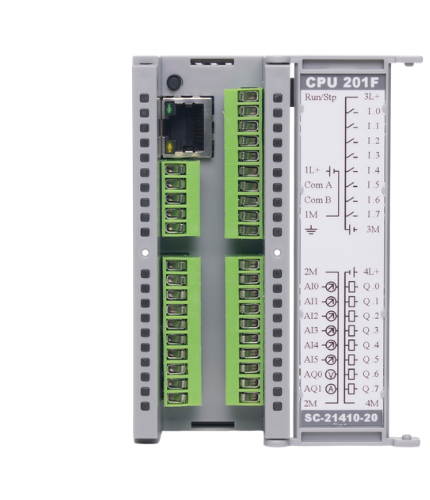

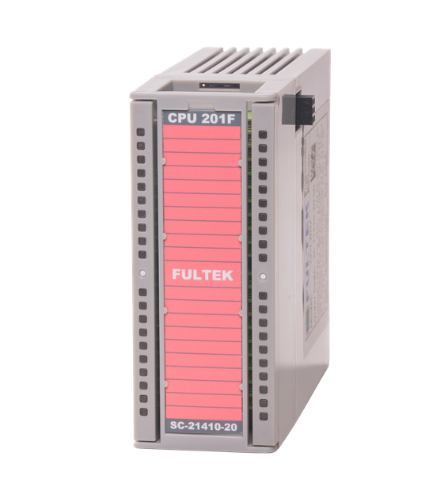

CPU 201FSC-21410-20-00Program memory: 115 kB
Serial port: 1x RS485
Digital input: 8x 200 KHz
Digital output: 8x 655 kHz (0,1A)
Analog input(12 Bit): 6x 0-10V or 0-20mA
Analog output(12 Bit): 1x 0-10V and 1x 0-20mA
Download brochure from here.
300

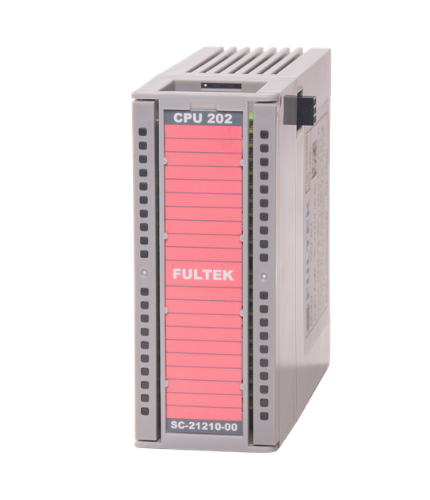

CPU 202SC-21210-00-00Program memory: 115 kB
Serial port: 2x RS485
Digital input: 8x 20 KHz
Digital output: 8x 20 KHz (0,5A)
Analog input(12 Bit): 6x 0-10V or 0-20mA
Analog output(12 Bit): 1x 0-10V and 1x 0-20mA
Download brochure from here.
275

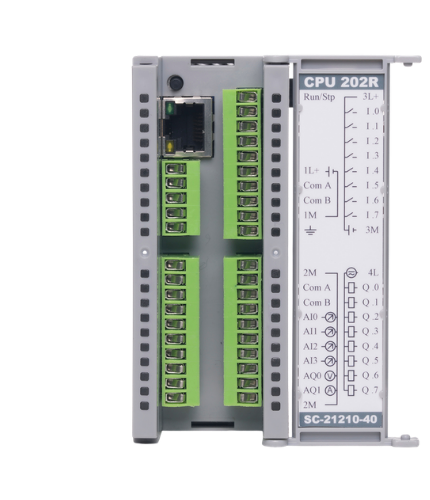

CPU 202R
SC-21210-40-00Program memory: 115 kB
Serial port: 2x RS485
Digital input: 8x 20 KHz
Digital output: 8x Relay Output (2A)
Analog input(12 Bit): 6x 0-10V or 0-20mA
Analog output(12 Bit): 1x 0-10V and 1x 0-20mA
Download brochure from here.
285

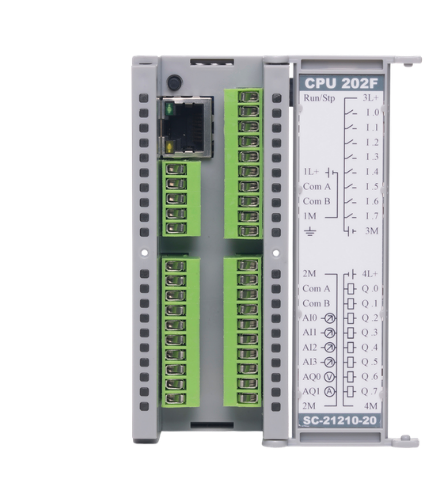

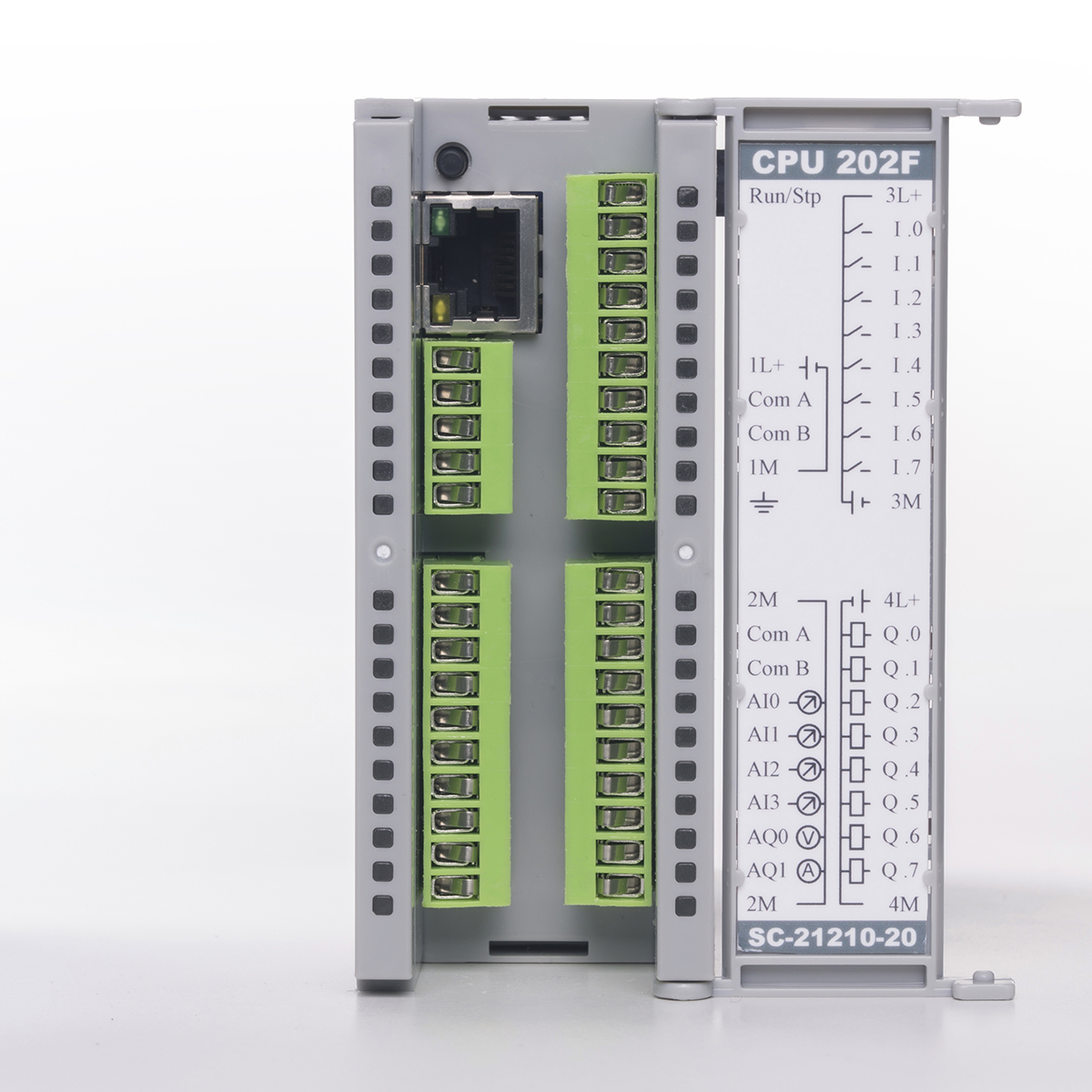

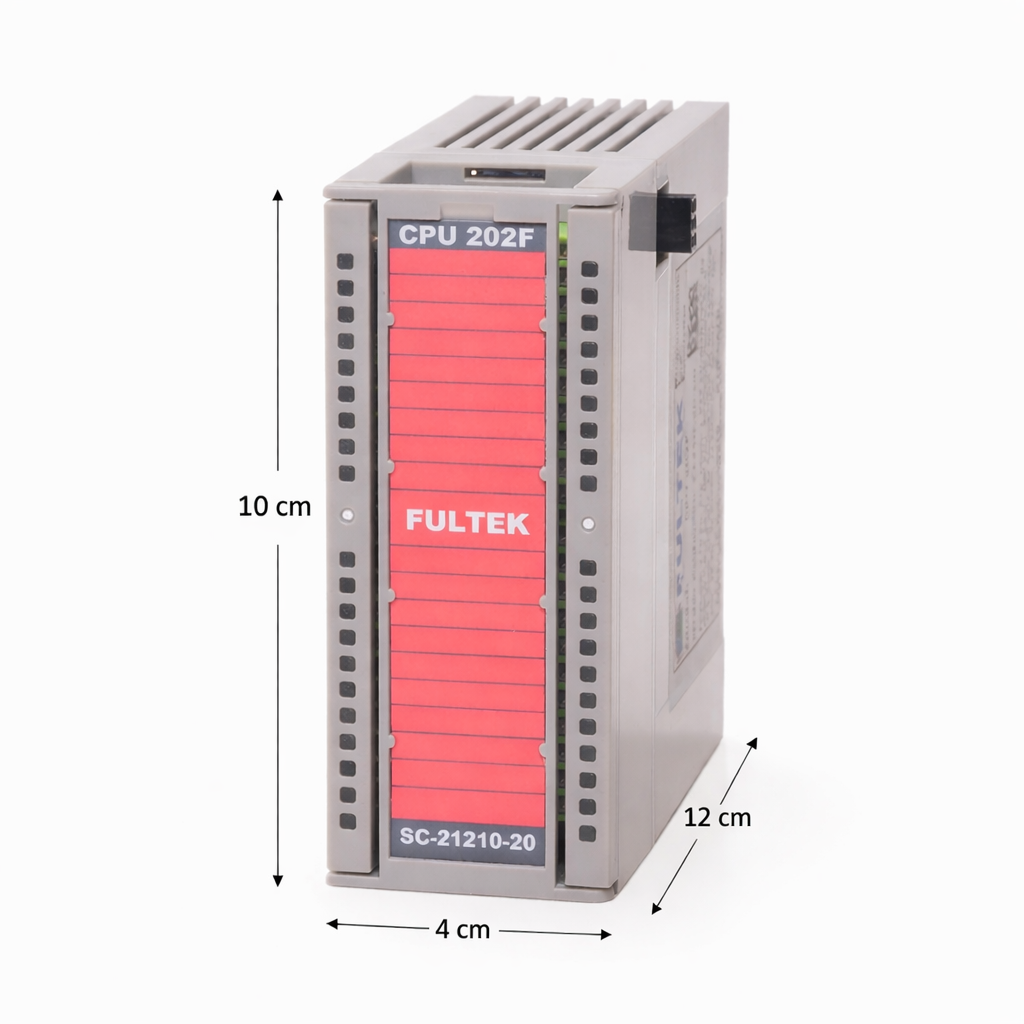

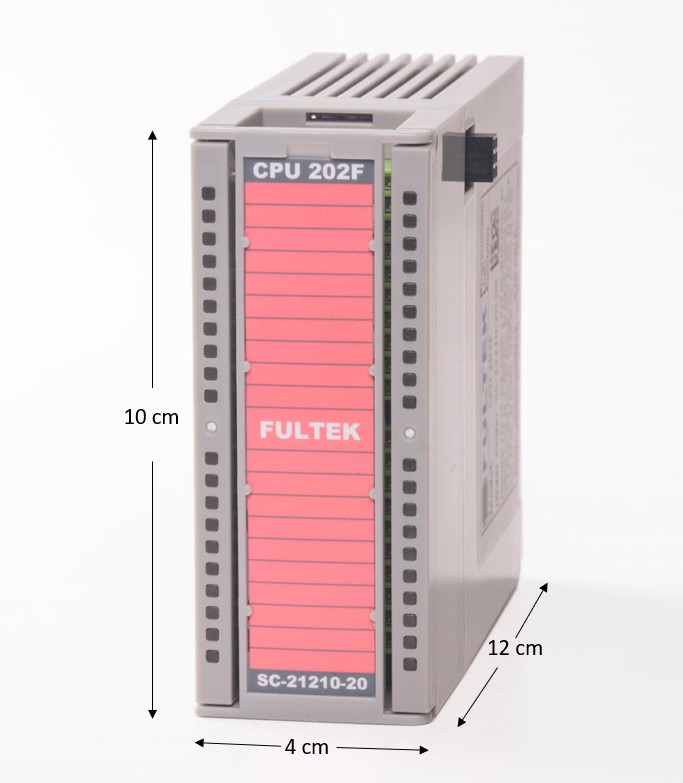

CPU 202FSC-21210-20-00
Program memory: 115 kB
Serial port: 2x RS485
Digital input: 8x 200 KHz
Digital output: 8x 655 KHz (0,1A)
Analog input(12 Bit): 6x 0-10V or 0-20mA
Analog output(12 Bit): 1x 0-10V and 1x 0-20mA
Download brochure from here.
325

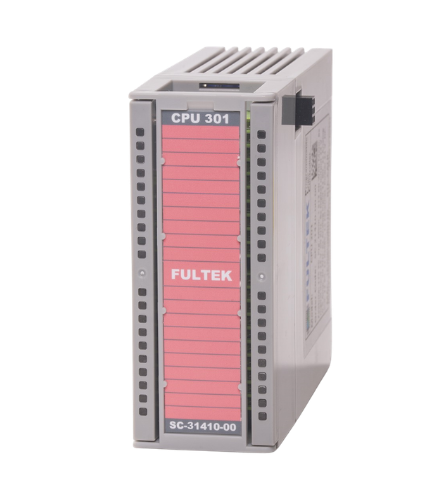

CPU 301SC-31410-20-00Program memory: 175 kB
SD Card: 4GB
Serial port: 1x RS485
Digital input: 8x 20 KHz
Digital output: 8x 20 KHz (0,5A)
Analog input(12 Bit): 6x 0-10V or 0-20mA
Analog output(12 Bit): 1x 0-10V ve 1x 0-20mA
500

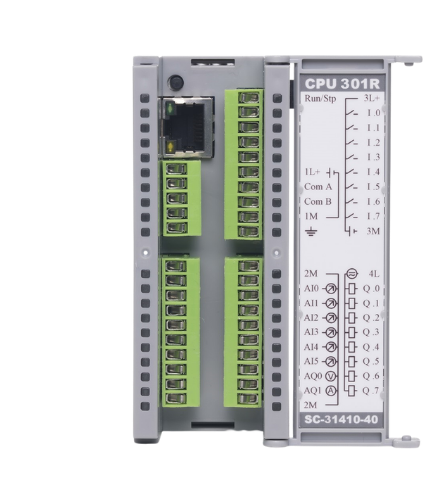

CPU 301RSC-31410-40-00Program memory: 175 kB
SD Card: 4GB
Serial port: 1x RS485
Digital input: 8x 20 KHz
Digital output: 8x Relay Output (2A)
Analog input(12 Bit): 6x 0-10V or 0-20mA
Analog output(12 Bit): 1x 0-10V and 1x 0-20mA
510

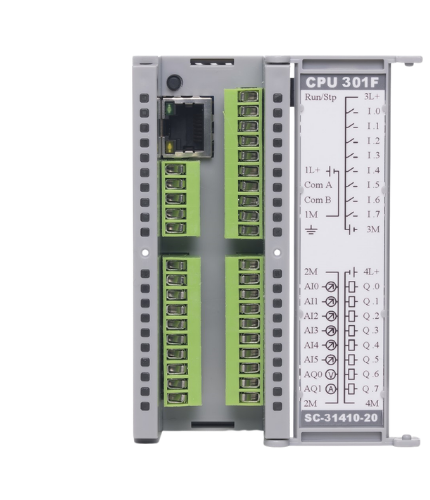

CPU 301FSC-31410-20-00Program memory: 175 kB
SD Card: 4GB
Serial port: 1x RS485
Digital input: 8x 200 KHz
Digital output: 8x 655 KHz (0,1A)
Analog input(12 Bit): 6x 0-10V or 0-20mA
Analog output(12 Bit): 1x 0-10V and 1x 0-20mA
550

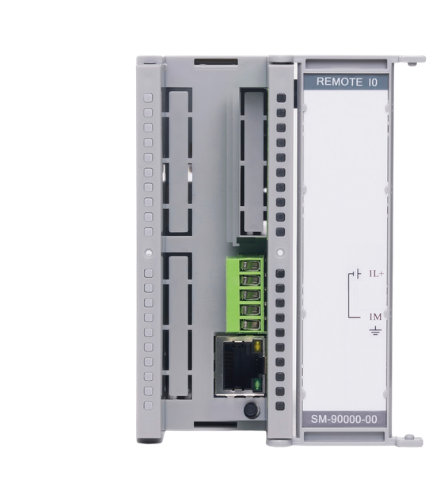

Remote CPUSM-90000-00-00
Up to 32 Remote IO can be added to Fulmatic 7 PLCs.
A total of 60 modules can be added with four racks and 15
modules per rack.
The main CPU reads and writes input/output values from all
Remote IO modules simultaneously using Ethernet UDP protocol.
CP modules cannot be added to Remote IO modules.
100

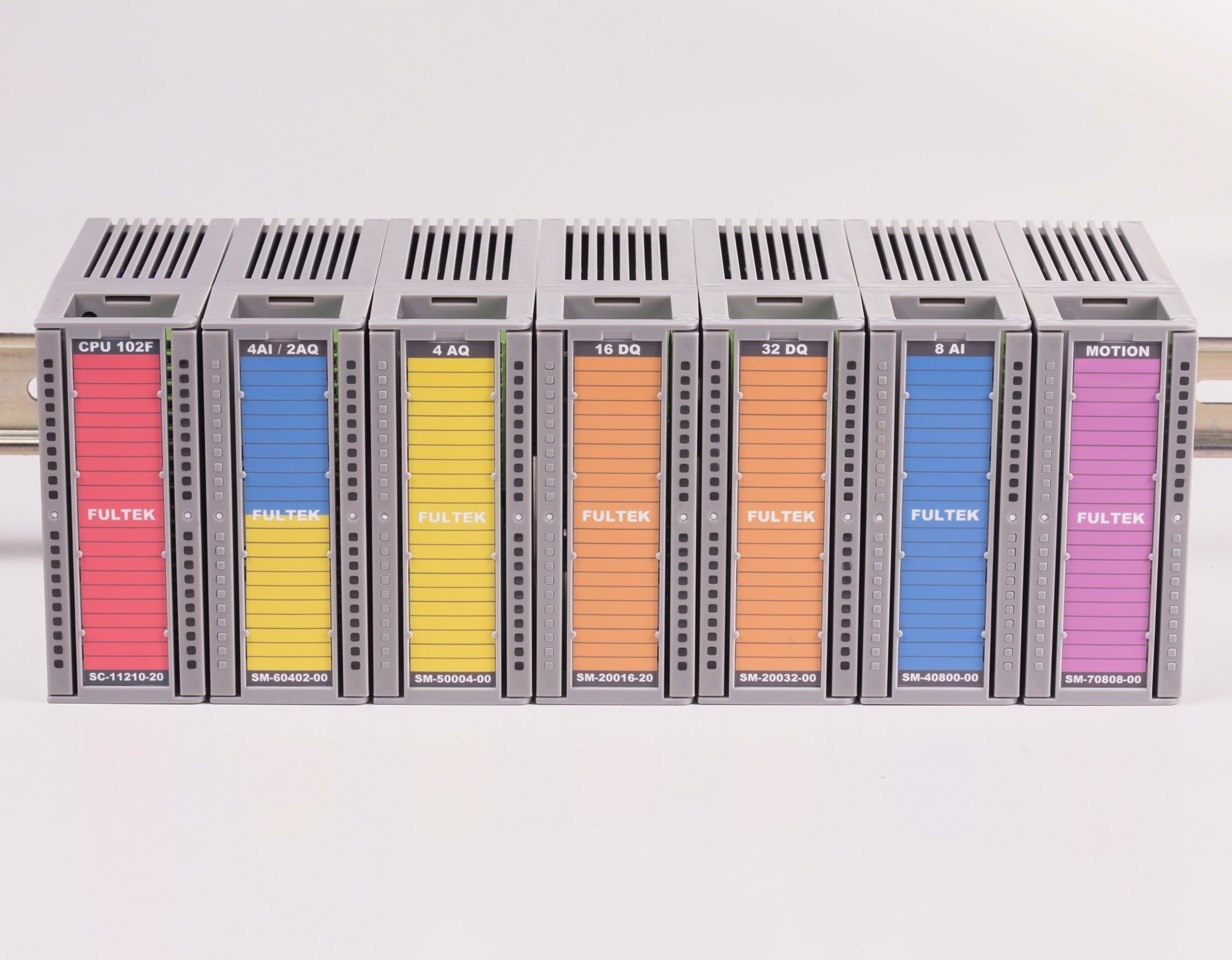

 PLC Extension Modules

Name Order Code Description Image Image Price (USD)

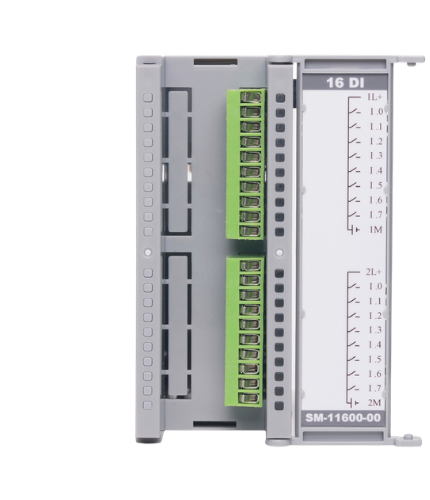

16 DI SM-11600-00-00 16 channel optical isolated digital input module. Supply voltage 20-28 V. DC. The maximum frequency is 50 Khz. 60

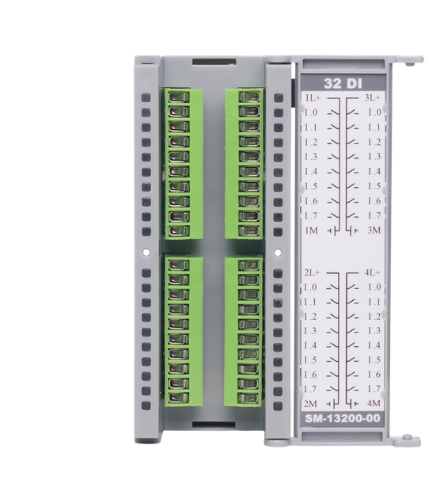

32 DI SM-13200-00-00 32 channel optical isolated digital input module. Supply voltage 20-28 V. DC. The maximum frequency is 50 Khz. 100

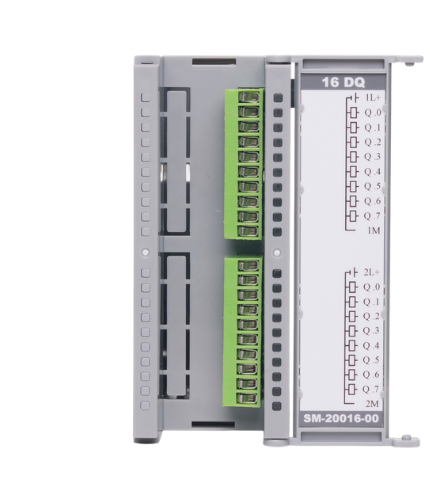

16 DQ SM-20016-00-00 16 channel optical isolated digital output module. Supply voltage 20-28 V. DC. Output current 0.5 Amp. Maximum frequency 40 Khz. 80
16 DQ 2A. SM-20016-20-00 16 channel optical isolated digital output module. Supply voltage 20-28 V. DC. Output current 2.0 Amp. Maximum frequency 30 Khz. 100

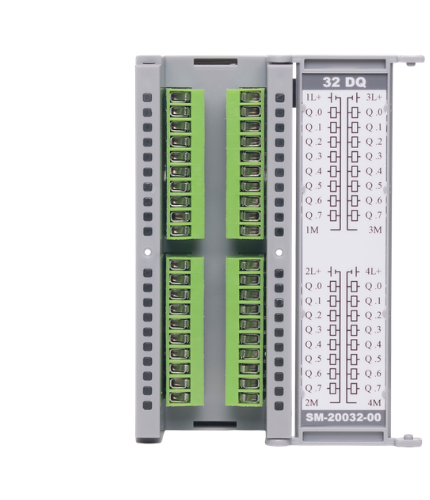

32 DQ SM-20032-00-00 32 channel optical isolated digital output module. Supply voltage 20-28 V. DC. Output current 0.5 Amp. Maximum frequency 40 Khz. 135

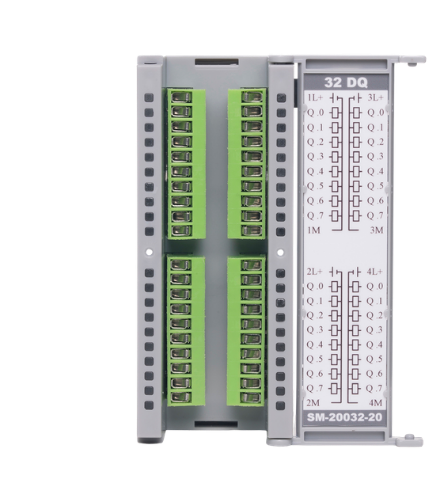

32 DQ 2A. SM-20032-20-00 32 channel optical isolated digital output module. Supply voltage 20-28 V. DC. Output current 2.0 Amp. Maximum frequency 30 Khz. 165
8 RQ MC. SM-20008-50-00 8 Channel relay output module. Supply voltage 20-28 V. DC. Contacts 250 V. 2.0 Amp. All contacts are free terminal. 60

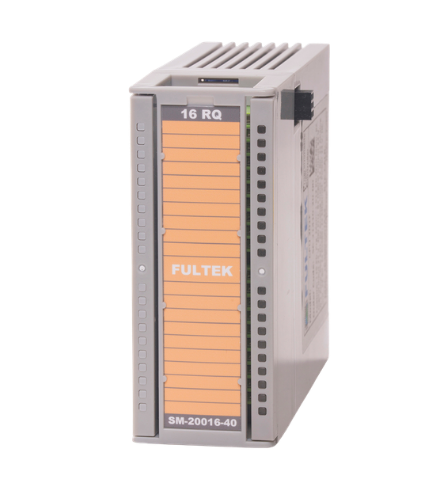

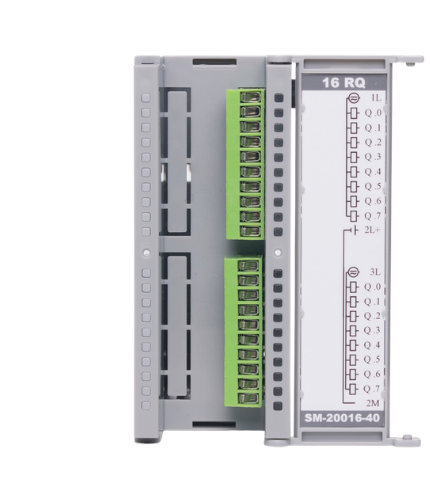

16 RQ MC. SM-20016-50-00 16 Channel relay output module. Supply voltage 20-28 V. DC. Contacts 250 V. 2.0 Amp. All contacts are free terminal. 100
16 RQ SC. SM-20016-40-00 16 Channel relay output module. Supply voltage 20-28 V. DC. Contacts 250 V. 2.0 Amp. The maximum current is 10 amps per terminal group. 90

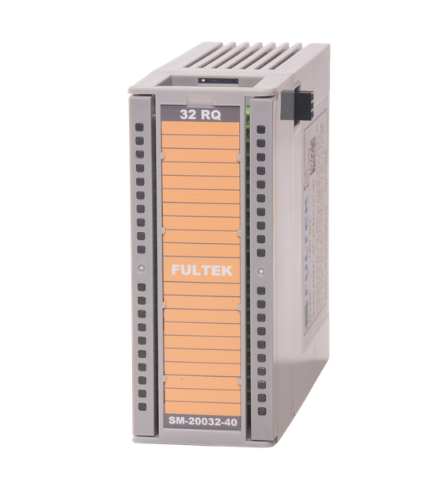

32 RQ SC. SM-20032-40-00 32 Channel relay output module. Supply voltage 20-28 V. DC. Contacts 250 V. 2.0 Amp. The maximum current is 10 amps per terminal group. 150

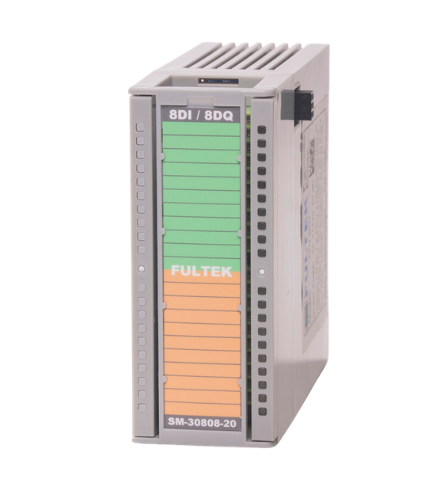

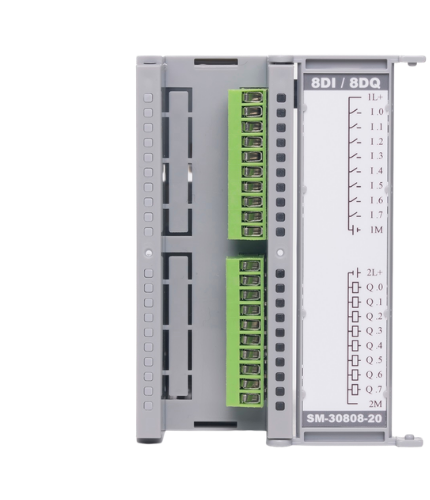

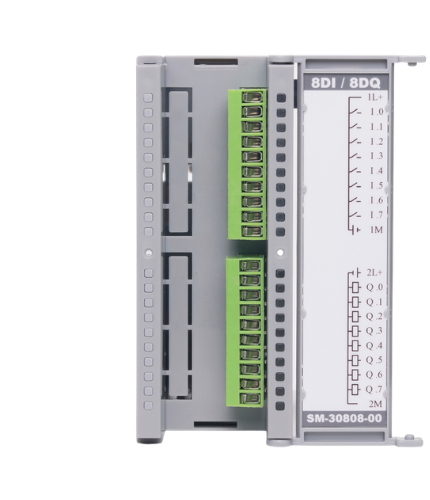

8DI / 8DQ SM-30808-00-00 8 channel optical isolated digital input and 8 channel optical isolated digital output module. Supply voltage 20-28 V. DC. Digital output current 0.5 Amp. Maximum input frequency 50 Khz, output frequency 40 Khz. 70
8DI / 8DQ 2A. SM-30808-20-00 8 channel optical isolated digital input and 8 channel optical isolated digital output module. Supply voltage 20-28 V. DC. Digital output current 2.0 Amp. 10 amp maximum current for output terminal group. The maximum input frequency is 50 kHz, the output frequency is 30 KHz. 80
8DI / 8RQ SM-30808-40-00 8 channel optical isolated digital input and 8 channel relay output module. Supply voltage 20-28 V. DC. Contacts 250 V 2.0 Amp. 10 amp for maximum current output terminal group. Maximum input frequency 50 KHz. 75

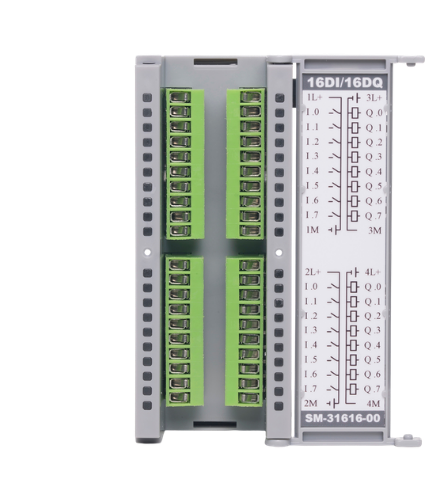

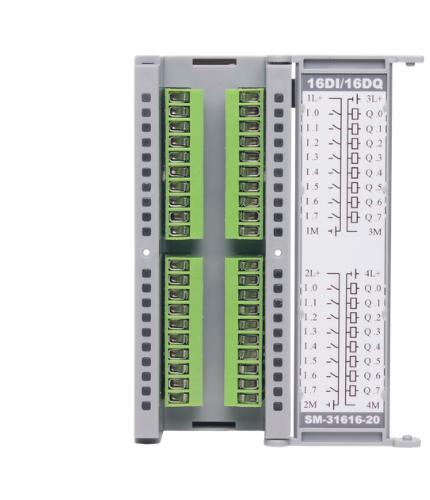

16DI / 16DQ SM-31616-00-00 16 channel optical isolated digital input and 16 channel optical isolated digital output module. Supply voltage 20-28 V. DC. Digital output current 0.5 Amp. Maximum input frequency 50 Khz, output frequency 40 Khz. 120
16DI / 16DQ 2A. SM-31616-20-00 16 channel optical isolated digital input and 16 channel optical isolated digital output module. Supply voltage 20-28 V. DC. Digital output current 2.0 Amp. 10 amp maximum current for output terminal group. The maximum input frequency is 50 kHz, the output frequency is 30 KHz. 140

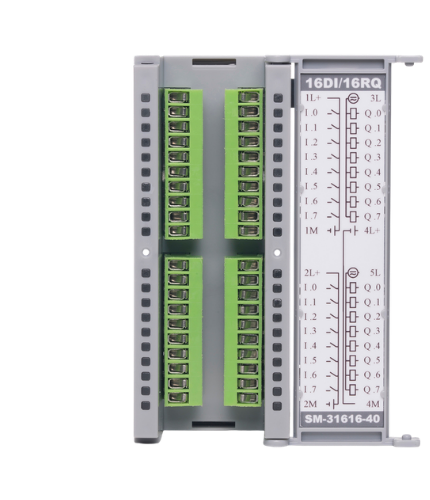

16DI / 16RQ SM-31616-40-00 16 channel optical isolated digital input and 16 channel relay output module. Supply voltage 20-28 V. DC. Contacts 250 V 2.0 Amp. 10 amp for maximum current output terminal group. Maximum input frequency 50 KHz. 130

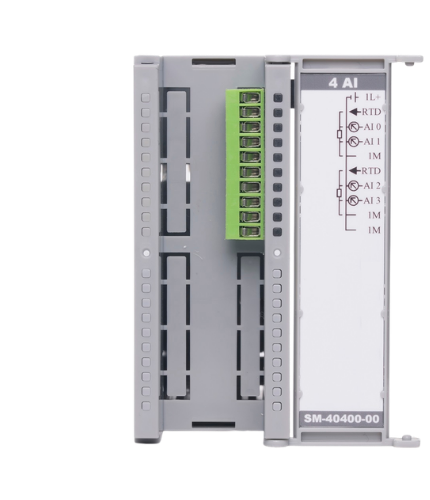

4 AI SM-40400-00-00 4 Channel analog input module (2 channels when Pt100, PT1000 and Resistor). Signal types: 0-10 V. / 0-20 MA. / PT100 / PT1000 / Resistor / Thermocouple B, E, J, K, N, R, S, T. Resolution 16 bit. Minimum 1000 samples per second. 100
8 AI SM-40800-00-00 8 Channel analog input module (4 channels when Pt100, PT1000 and Resistor). Signal types: 0-10 V. / 0-20 MA. / PT100 / PT1000 / Resistor / Thermocouple B, E, J, K, N, R, S, T. Resolution 16 bit. Minimum 500 samples per second. 150

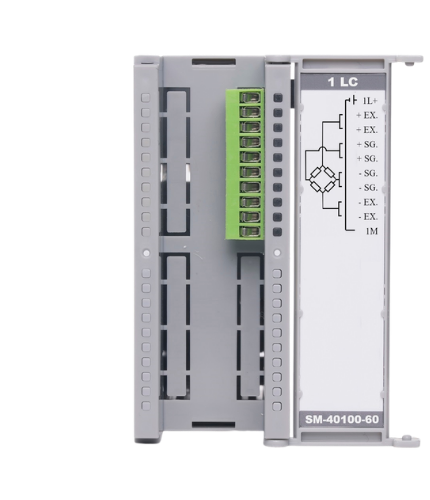

1 LC SM-40100-60-00 1 Channel Loadcell input module. -19mv / + 19mv, resolution 20 bit. 80 samples per second. Maximum 16 Loadcells (350 ohm) can be connect 100

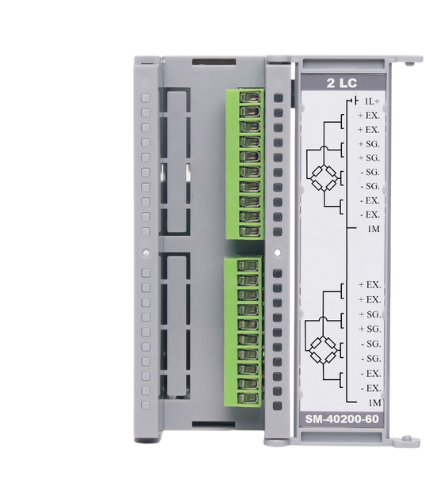

2 LC SM-40200-60-00 2 Channel Loadcell input module. -19mv / + 19mv, resolution 20 bit. 80 samples per second. Maximum 8 Loadcells (350 ohm) can be connect to each channel. 150

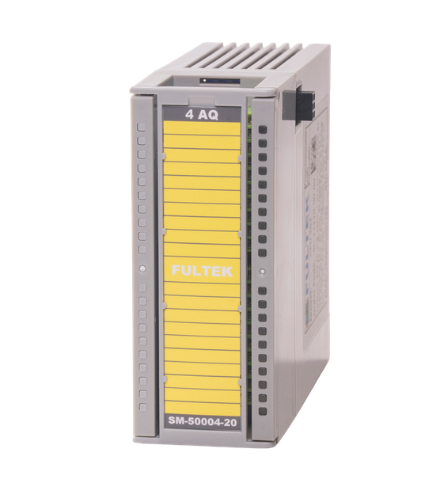

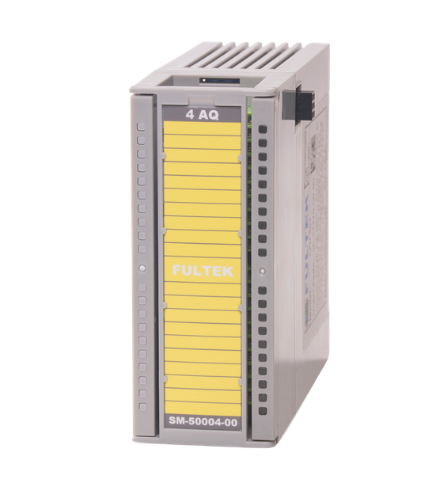

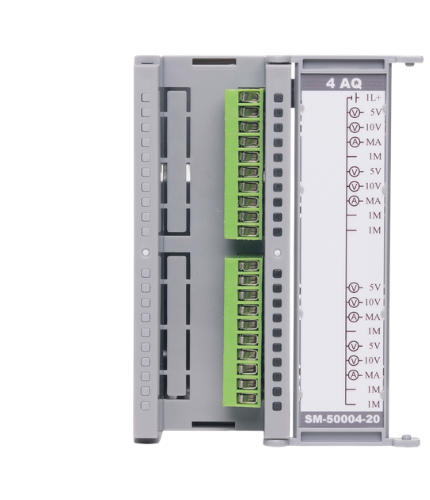

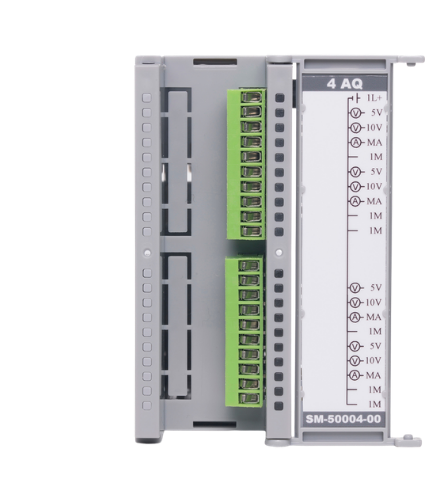

4 AQ 12B. SM-50004-00-00 4 Channel 12 bit analog output module. Each channel have three outputs 0-5 V / 0-10 V / 0-20 Ma. All outputs can be used at the same time. The maximum current for voltage output channels is max. 20 Ma. 50000 samples per second. 110
4 AQ 16B. SM-50004-20-00 4 Channel 16 bit analog output module. Each channel have three outputs 0-5 V / 0-10 V / 0-20 Ma. All outputs can be used at the same time. The maximum current for voltage output channels is max. 20 Ma. 50000 samples per second. 150

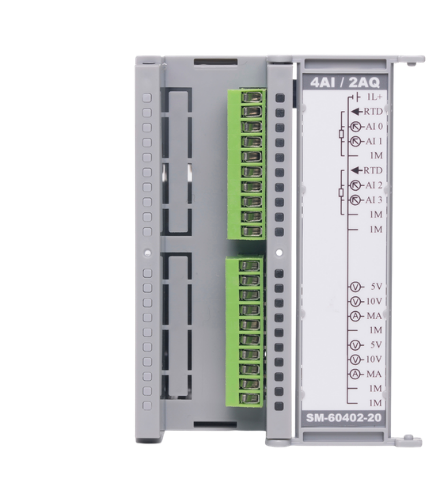

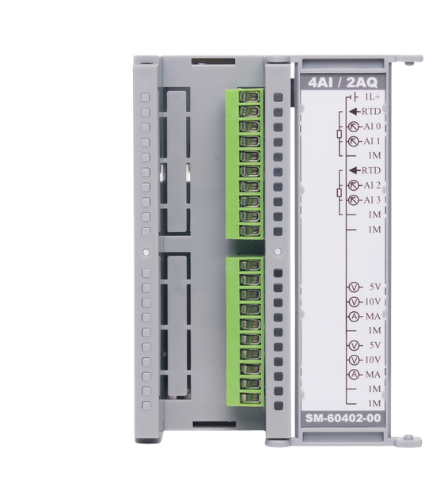

4AI / 2AQ 12B. SM-60402-00-00 4 channel 16 bit analog input (2 channels when Pt100, PT1000 and Resistor) and 2 channels 12 bit analog output module. Analog input signal types: 0-10 V. / 0-20 MA. / PT100 / PT1000 / Resistor / Thermocouple B, E, J, K, N, R, S, T. Each analog output channel have three outputs 0-5 V / 0-10 V / 0-20 Ma. All outputs can be used at the same time. The maximum current for voltage output channels is max. 20 Ma. 1000 samples per second. 150

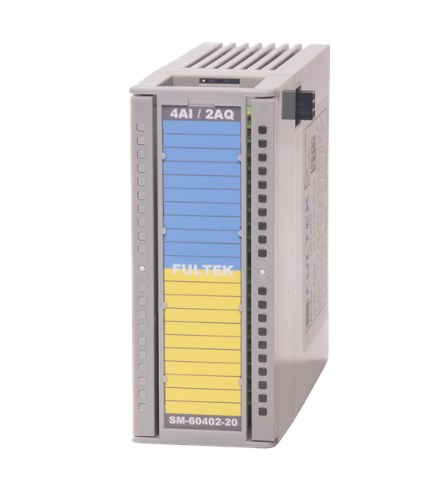

4AI / 2AQ 16B. SM-60402-20-00 4 channel 16 bit analog input (2 channels when Pt100, PT1000 and Resistor) and 2 channels 16 bit analog output module. Analog input signal types: 0-10 V. / 0-20 MA. / PT100 / PT1000 / Resistor / Thermocouple B, E, J, K, N, R, S, T.  Each analog output channel have three outputs 0-5 V / 0-10 V / 0-20 Ma. All outputs can be used at the same time. The maximum current for voltage output channels is max. 20 Ma. 1000 samples per second. 170
MOTION SM-70808-00-00 8 channel galvanic isolated digital input and 8 channel galvanic isolated digital output module. DIGITAL INPUTS: Maximum frequency single channel 120 Khz., Two channels 100 Khz, three channels 80 Khz, eight channels 45 Khz. Measurement Type: Counter rising edge, falling edge. Encoder: AB, ABZ, 2X and 4X. Frequency measurement and period measurement. DIGITAL OUTPUTS: Digital output, PWM 655 Khz and PTO. When the selected PTO one channel or two channels in the same group 100 Khz, two channels or four channels in the two group 70 Khz, all outputs 40 Khz. Output current 0.1 Amp. 200
CP 100 SM-80202-00-00 2 Channel RS485 / RS422 communication module. Maximum 1 Mps. 200
CP 101 SM-80202-20-00 2 Channel RS232 communication module. Maximum 250 Kps. 200
RACK EXT. SM-80000-00-00 SM-80001-00-00 Rack extension module. It consists of two modules, Rack input and Rack output. The rack input module must be installed at the end of the top row rack and the Rack output module at the top of the bottom row rack. The transition cable is standard 100 cm. 200

You can download Fulmatic 7 Series PLC CPU user’s manual here.

You can download Fulmatic SOFT software here.

You can download price list here.

Fulmatic SOFT introduction video:
